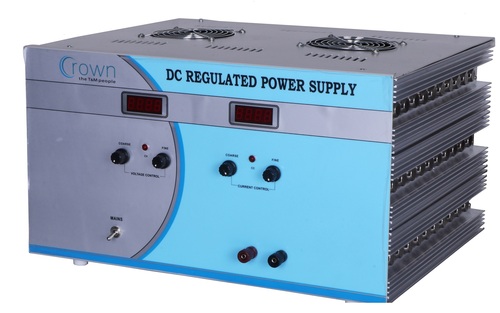

                                              High Voltage DC Regulated Power Supply

                                              High Voltage DC Regulated Power Supply
                                              High Voltage DC Regulated Power Supply
                                              Send Inquiry
                                              Product Code : CES-716
                                              Product Description

                                              We are proficiently manufacturing and exporting a superior range of High Voltage DC Regulated Power Supply. The device regulates load and line voltage variation and known for constant voltage and current type supplies. Our device is designed by utilizing superior quality of materials at our well equipped production unit under the supervision of our technical experts in adherence with quality norms set by the industry. The High Voltage DC Regulated Power Supply is available at economical prices.

                                              Features:

                                              • Protection against overload
                                              • Precision engineered
                                              • Long service span




                                              High Voltage DC Regulated Power Supply

                                              “CROWN” HIGH VOLTAGE DC REGULATED POWER SUPPLY are Constant Voltage and Constant Current Type supplies have high regulation for Load and Line Voltage Variation. The supply are protected against short circuit over load. The output , current can be controlled to any value from O to maximum.

                                              CODE

                                              OUTPUT (VOLTAS)

                                              VOLTAGE CURRENT (MAX)

                                              CES-715

                                              0-300V

                                              5A

                                              CES-716

                                              0-300V

                                              2A

                                              CES-717

                                              0-300V

                                              1A

                                              CES-718

                                              0-300V

                                              500mA

                                              CES-718

                                              0-300V

                                              100mA

                                              CES-720

                                              0-500V

                                              100mA

                                              • 0-300 V DC / 100mA with two digital meters BIAS 0-100VDC, filament 6.3V AC.
                                              • INPUT VOLTAGE : 230 V ±10% AC 50 Hz
                                              • LOAD REGULATION CV : ± 0.05 % ±3mV From no load to full load
                                              • LOAD REGULATION CC : ±0.05% ±1 mA From no load to full load
                                              • LINE REGULATION CV : ± 0.01 % ± 3mV for ±10% variation input voltage
                                              • LINE REGULATION CC : ± 0.01% 1 mA for ±10% variation input voltage
                                              • RIPPLE : 3 mV
                                              • METER : Two Digital meters to monitor the output voltage and current
                                              • INDICATION : LED FOR CV and CC Operating Mode
                                              • ACCURACY : 11% +1 Digit
                                              • PROTECTION : Against short circuit and over load
                                              • (POWER SUPPLY ARE ALSO AVAILABLE AS PER CUSTOMER SPECIFICATION)
