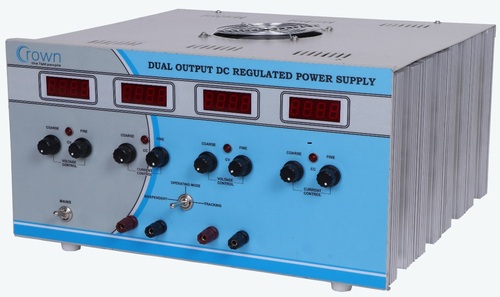

DUAL OUTPUT DC REGULATED POWER SUPPLY 0-+128V 5A

About DUAL OUTPUT DC REGULATED POWER SUPPLY 0-+128V 5A

" CROWN " offer best in class constant voltage current Dual Output DC Regulated Power Supply using linear technology offering all kind of protections with specification and features to meet customer requirements. Our power supply offer stabilized output voltage with low ripple in wide input variation of -+10% with full protection against Short Circuit & over load using fold back technology. The supply can be used in independent & tracking mode.

SPECIFICATION

INPUT VOLTAGE : 230V -+ 10% AC 50 Hz

LOAD REGULATION CV : -+ 0.05 % -+ 3mV From no load to full load

LOAD REGULATION CC : -+ 0.05% -+ 1mA From no load to full load

LINE REGULATION CV : -+ 0.01 % -+ 3mV for -+10% variation input voltage

LINE REGULATION CC : -+ 0.01% -+ 1mA for -+ 10% variation input voltage

OPERATING MODE : Independent & Tracking mode

RIPPLE : 2 mV

METER : Four Digital meters to monitor the output voltage & current voltage & current of A & B Supply

INDICATION : LED FOR CV & CC Operating Mode

ACCURACY : -+ 1% + 1 Digit

PROTECTION : Against short circuit & over load
