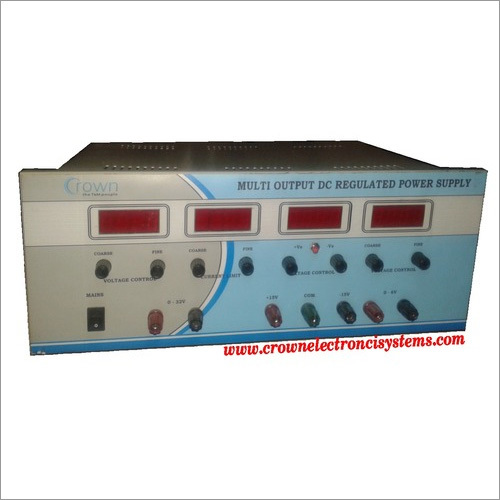

Multi Output DC Regulated Power Supply

Product Description

"CROWNï made MULTI OUTPUT DC REGULATED POWER SUPPLY are constant Voltage & Constant Current type supplies , have high regulation for Load & Line Voltage variation . The supply can be use in independent & tracking mode . The supply are protected against short circuit & over load . The output current can be controlled to any value from 0 to maximum .

SPECIFICATION

INPUT VOLTAGE : 230V -+ 10% AC 50 Hz

OUTPUT VOLTAGE / : (A) 0 - 32V DC / 2 Amp

CURRENT                     (B &C) 0 - -+ 15 V DC / 1 Amp

                                      (D) 0 - 5V DC / 5 Amp

LOAD REGULATION (CV) : -+ 0.05 % -+ 3mV From no load to full load

LOAD REGULATION (CC) : -+ 0.05% -+ 1mA From no load to full load

LINE REGULATION (CV) : -+ 0.01 % -+ 3mV for -+10% variation input voltage

RIPPLE : Less than 1 mV

METER : (1) Two Digital meters to monitor the output voltage & current of output A

                (2) One Digital meter to monitor the output voltage of output B&C,

                selectable by switch

                (3) One digital meter to monitor the voltage of output D

PROTECTION : Against short circuit & over load

(POWER SUPPLY ARE ALSO AVAILABLE AS PER CUSTOMER SPECIFICATION)
